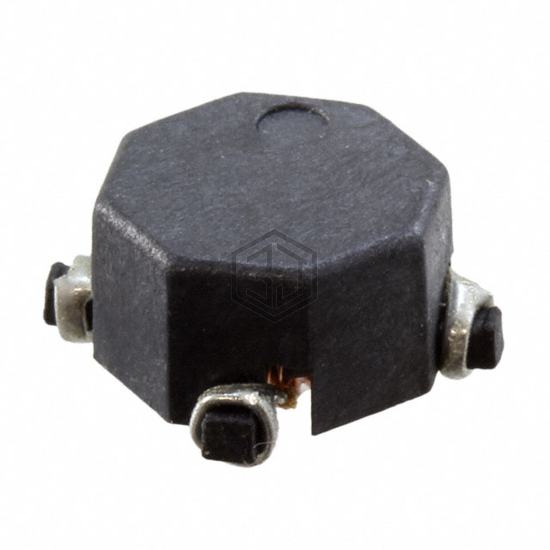

INDUCT ARRAY 2 COIL 15UH SMD
SCX114-150 is a Arrays, Signal Transformers manufactured by Signal Transformer. INDUCT ARRAY 2 COIL 15UH SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, size / dimension 0.461" L x 0.461" W (11.70mm x 11.70mm), tolerance ±20%.
In Stock: 3,735
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 15 µH |
| Inductance - Connected In Series | 60.12 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.4 A |
| Current Rating - Series | 700 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 87mOhm Max |
| DC Resistance (DCR) - Series | 348mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.461" L x 0.461" W (11.70mm x 11.70mm) |
| Height | 0.217" (5.50mm) |
Submit your RFQ for SCX114-150 and get a quote within 24 hours.
