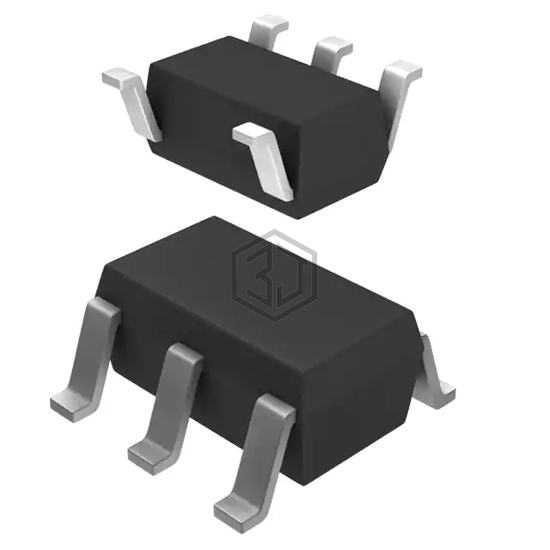

IC GATE DRVR LOW-SIDE SOT23-5
SC1301BISKTRT is a PMIC - Gate Drivers manufactured by Semtech Corporation. IC GATE DRVR LOW-SIDE SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 16.5V, package / case SC-74A, SOT-753.
In Stock: 4,566
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
SC1301BISKTRT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC1412NEOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 99% | View |
| TC1412EUA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 99% | View |
| TPS2828DBVT | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 91% | View |
| TPS2829DBVT | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 91% | View |
| NCP302155AMNTWG | onsemi | INT DRIVER AND MOSFET | 83% | View |
| ZXGD3009E6TA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT26 | 50% | View |
Submit your RFQ for SC1301BISKTRT and get a quote within 24 hours.
