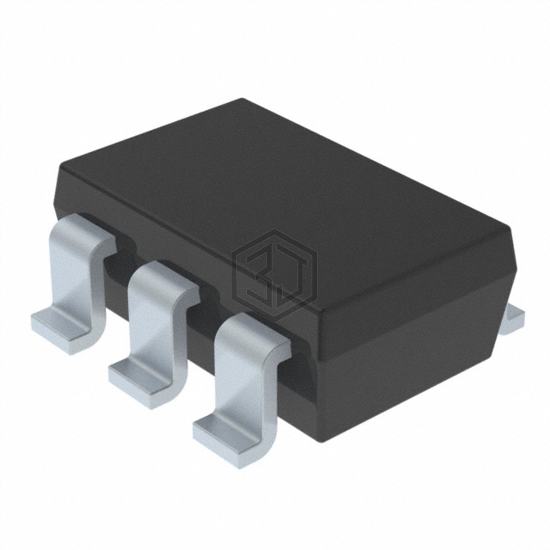

IC GATE DRVR LOW-SIDE SOT26
ZXGD3009E6TA is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRVR LOW-SIDE SOT26. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 40V (Max), package / case SOT-23-6.
In Stock: 8,293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 40V (Max) |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 210ns, 240ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ZXGD3009DYTA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT363 | 100% | View |
| ZXGD3003E6QTA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT23-6 | 61% | View |
| ZXGD3003E6TA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT23-6 | 61% | View |
| ZXGD3004E6TA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT23-6 | 53% | View |
| ZXGD3006E6TA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT26 | 52% | View |
| ZXGD3006E6QTA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT26 | 52% | View |
Submit your RFQ for ZXGD3009E6TA and get a quote within 24 hours.
