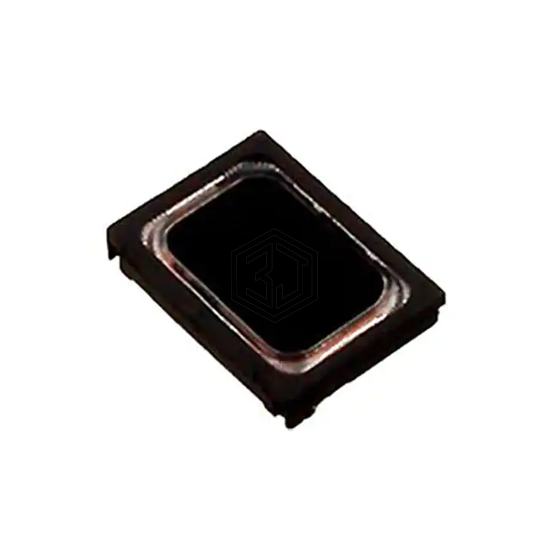

MICROSPEAKER - 13 X 18 X 2.5MM -
CR1813L025UN8-2 is a Speakers manufactured by Seltech. MICROSPEAKER - 13 X 18 X 2.5MM -. Key specifications: size / dimension 0.709" L x 0.512" W (18.00mm x 13.00mm), termination Spring Type, ingress protection IP66 - Dust Tight, Water Resistant, power - max 1 W.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 800 Hz ~ 20 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 75.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sensitivity |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CR1813L025UN8-2 and get a quote within 24 hours.
