MICROSPEAKER - 11 X 15 X 3.5MM -

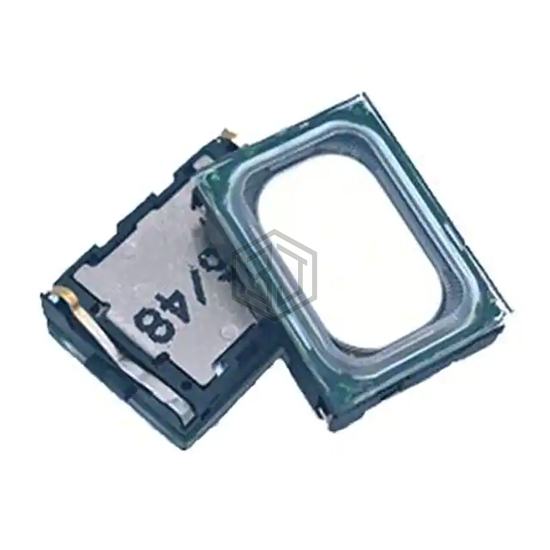

CR1511L030UN8-2 is a Speakers manufactured by Seltech. MICROSPEAKER - 11 X 15 X 3.5MM -. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Spring Type, power - max 1 W, frequency range 900 Hz ~ 10 kHz.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 900 Hz ~ 10 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 70.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sensitivity |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for CR1511L030UN8-2 and get a quote within 24 hours.
