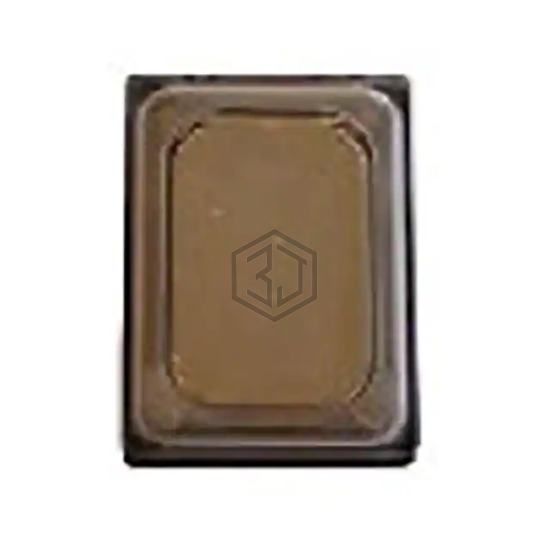

SPEAKER 6OHM 700MW TOP PORT
BR1511L035UN6-WP is a Speakers manufactured by Seltech. SPEAKER 6OHM 700MW TOP PORT. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Spring Type, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.2 W.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 900 Hz ~ 5 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 6 Ohms |
| Efficiency - dBA | 72.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sensitivity |
| Power - Rated | 700 mW |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for BR1511L035UN6-WP and get a quote within 24 hours.
