SPEAKER BOX WITH SOLDER PADS - 1
BOX1-18082-7SP is a Speakers manufactured by Seltech. SPEAKER BOX WITH SOLDER PADS - 1. Key specifications: size / dimension 1.575" L x 0.472" W (40.00mm x 12.00mm), termination Solder Pads, power - max 1 W, frequency range 900 Hz ~ 10 kHz.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 900 Hz ~ 10 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 72.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sensitivity |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |

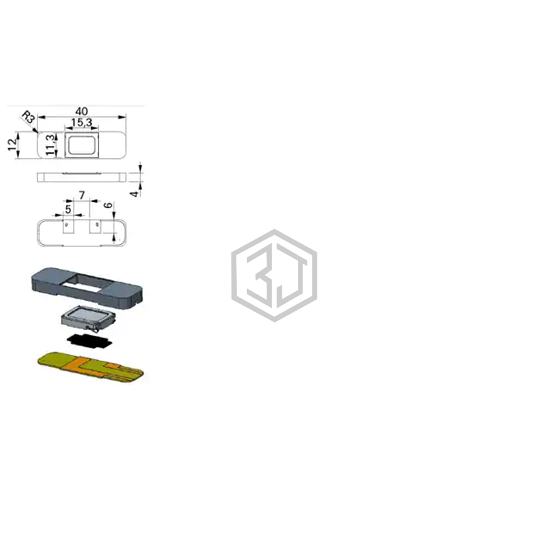

| Size / Dimension | 1.575" L x 0.472" W (40.00mm x 12.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for BOX1-18082-7SP and get a quote within 24 hours.
