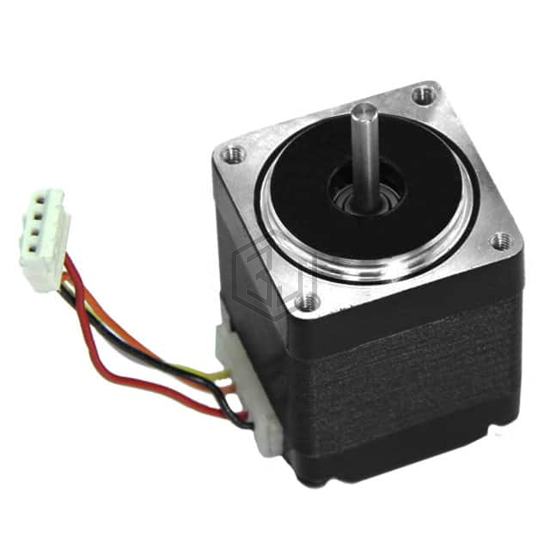

STEP MOTOR HYBRD BIPOLAR 12-24V
316020002 is a Stepper Motors manufactured by Seeed Technology Co., Ltd. STEP MOTOR HYBRD BIPOLAR 12-24V. Key specifications: voltage - rated 12 ~ 24VDC, current rating (amps) 450 mA, size / dimension Square - 1.110" x 1.110" (28.20mm x 28.20mm), termination style Wire Leads with Connector.
In Stock: 3,357
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 12 ~ 24VDC |
| Current Rating (Amps) | 450 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 8.33 / 58.84 |
| Size / Dimension | Square - 1.110" x 1.110" (28.20mm x 28.20mm) |
| NEMA Frame Size | 11 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | - |
| Mounting Hole Spacing | 1.281" (32.53mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | - |
| Coil Resistance | 11 Ohms |
| Features | Round Shaft |
Submit your RFQ for 316020002 and get a quote within 24 hours.
