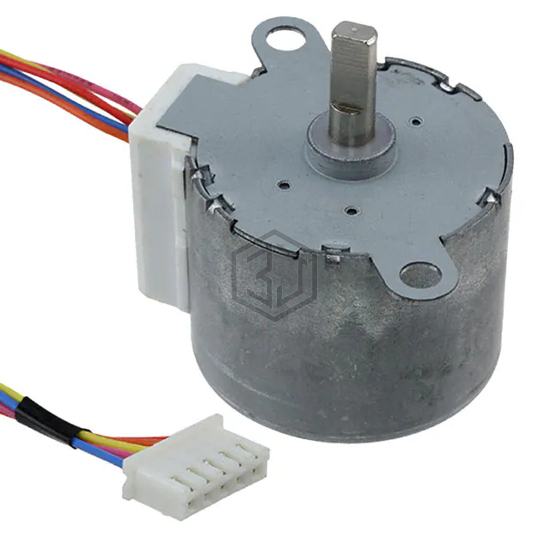

STEPPER MOTOR PM UNIPOLAR 12V
108990004 is a Stepper Motors manufactured by Seeed Technology Co., Ltd. STEPPER MOTOR PM UNIPOLAR 12V. Key specifications: voltage - rated 12VDC, size / dimension Round - 1.378" Dia (35.00mm), termination style Wire Leads with Connector.
In Stock: 9,102
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 42.5 |
| Step Angle | 3.75° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 41.66 / 294.2 |
| Size / Dimension | Round - 1.378" Dia (35.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 1.650" (42.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | - |
| Coil Resistance | 100 Ohms |
| Features | Round Shaft |
Submit your RFQ for 108990004 and get a quote within 24 hours.
