ELECTROMECHNICAL POWER RELAYS, S

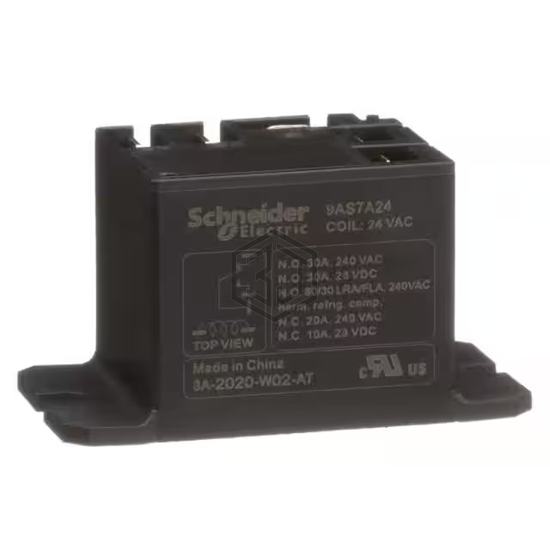

9AS7A24 is a Power Relays, Over 2 Amps manufactured by Schneider Electric. ELECTROMECHNICAL POWER RELAYS, S. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 40°C, contact material Silver Alloy, termination style Quick Connect - 0.187"/0.250".
In Stock: 2,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC, 28VDC - Max |
| Coil Current | 24 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 20.4 VAC |
| Must Release Voltage | 4.8 VAC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 40°C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
Submit your RFQ for 9AS7A24 and get a quote within 24 hours.
