MOTOR DRIVER IC

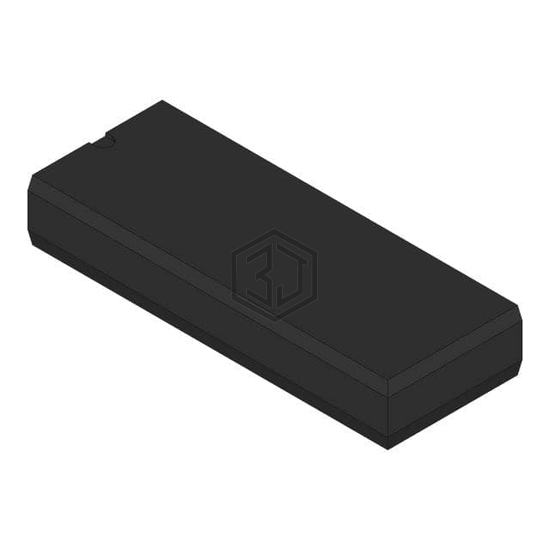

LB1946-E is a PMIC - Motor Drivers, Controllers manufactured by Sanyo. MOTOR DRIVER IC. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 30-SDIP (0.400", 10.16mm).
In Stock: 4,187
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel, Serial |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 30-SDIP (0.400", 10.16mm) |
| Supplier Device Package | 30-PDIP |
LB1946-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB11847L-E | onsemi | IC MTRDRV BIPLR 4.75-5.25V 28DIP | 99% | View |
| SLA7076MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 93% | View |
| SLA7071MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 93% | View |
| TB67S158NG | Toshiba Semiconductor and Storage | IC MTR DRV UNIPOLR 10-60V 24SDIP | 86% | View |
| SMA6822MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 52% | View |
| SMA6852MZ LF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 52% | View |
Submit your RFQ for LB1946-E and get a quote within 24 hours.
