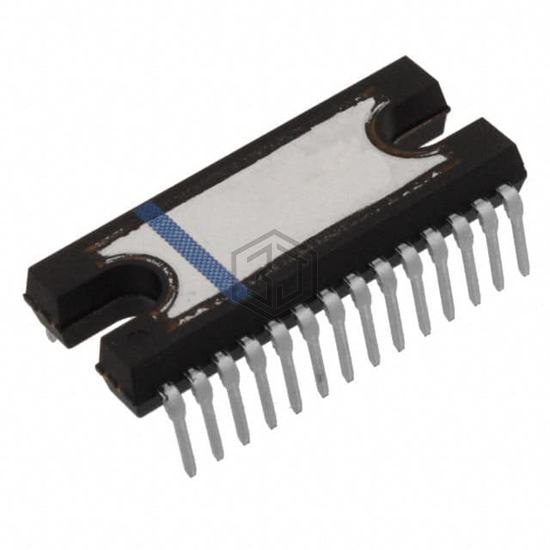

IC MTRDRV BIPLR 4.75-5.25V 28DIP
LB11847L-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MTRDRV BIPLR 4.75-5.25V 28DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 28-SDIP (0.500", 12.70mm) Exposed Pad.
In Stock: 632
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-HDIP |
LB11847L-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB11847-E | onsemi | IC MOTOR DRIVER BIPOLAR 28HDIP | 100% | View |
| LB1946-E | Sanyo | MOTOR DRIVER IC | 99% | View |
| SLA7076MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| SMA6854MZ LF2451 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 53% | View |
| SMA6822MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 53% | View |
| SMA6852MZ LF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 53% | View |
Submit your RFQ for LB11847L-E and get a quote within 24 hours.
