2-CH H-BRIDGE DRIVER

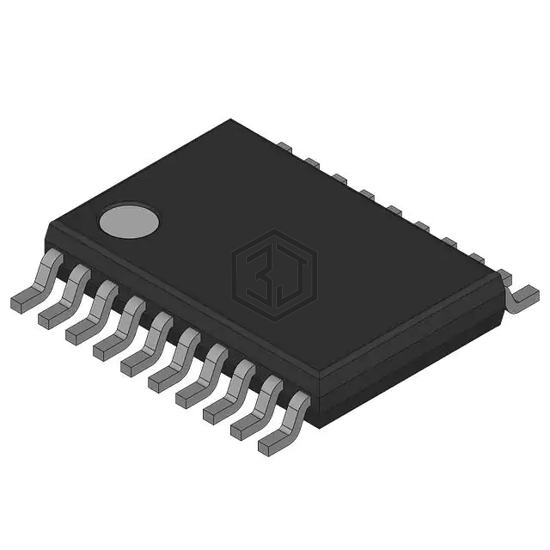

LB1940T-MPB-E is a PMIC - Full, Half-Bridge Drivers manufactured by Sanyo. 2-CH H-BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C (TA), voltage - supply 1.9V ~ 6.5V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 1,975
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose, Stepper Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Bipolar |
| Rds On (Typ) | - |
| Current - Output / Channel | 400mA |
| Current - Peak Output | - |
| Voltage - Supply | 1.9V ~ 6.5V |
| Voltage - Load | 1.6V ~ 7.5V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Features | - |
| Fault Protection | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
LB1940T-MPB-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB1940T-MPB-H | Sanyo | 2-CH H-BRIDGE DRIVER | 100% | View |
| LB1939T-MPB-E | onsemi | IC BRIDGE DRIVER PAR TSSOP-20 | 100% | View |
| LB1940U-TLM-E | onsemi | IC MOTOR DRIVER PAR 20MSOP | 100% | View |
| LB1939T-TLM-E | onsemi | IC MOTOR DRIVER PAR 20TSSOP | 100% | View |
| L2293Q | STMicroelectronics | IC BRIDGE DRIVER ON/OFF 32VFQFPN | 67% | View |
| L2293QTR | STMicroelectronics | IC BRIDGE DRIVER ON/OFF 32VFQFPN | 67% | View |
Submit your RFQ for LB1940T-MPB-E and get a quote within 24 hours.
