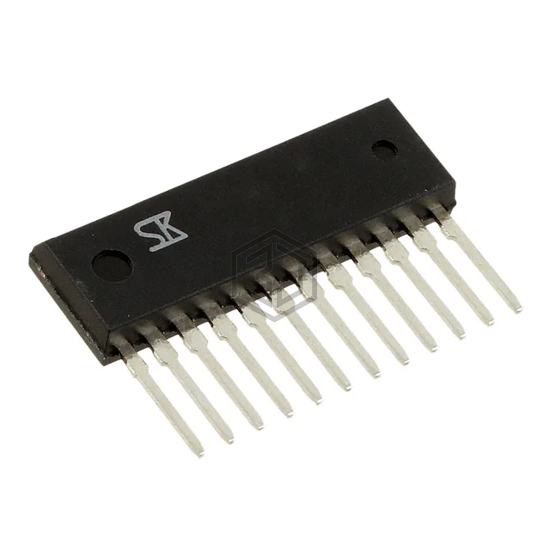

MOSFET 6N-CH 250V 7A 12-SIP
SMA5117 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 6N-CH 250V 7A 12-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 12-SIP, power - max 4W.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 250V |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 3.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 850pF @ 10V |
| Power - Max | 4W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP |
| Supplier Device Package | 12-SIP |
Submit your RFQ for SMA5117 and get a quote within 24 hours.
