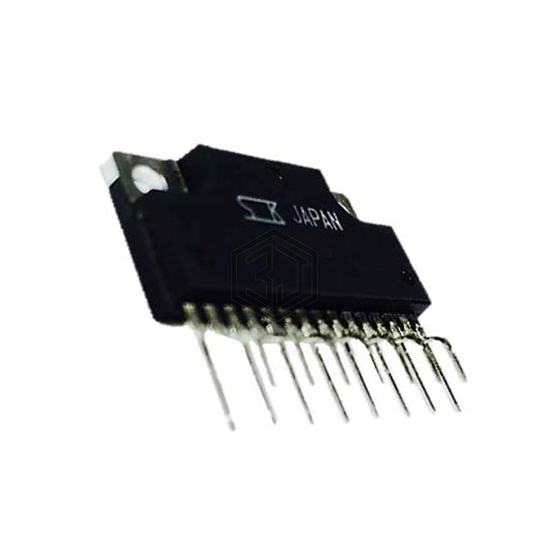

MOSFET 4N-CH 60V 7A 15-SIP
SLA5065 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 4N-CH 60V 7A 15-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 15-SIP Exposed Tab, Formed Leads, power - max 4.8W.
In Stock: 727
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 4 N-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 3.5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 660pF @ 10V |
| Power - Max | 4.8W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 15-SIP Exposed Tab, Formed Leads |
| Supplier Device Package | 15-ZIP |
Submit your RFQ for SLA5065 and get a quote within 24 hours.
