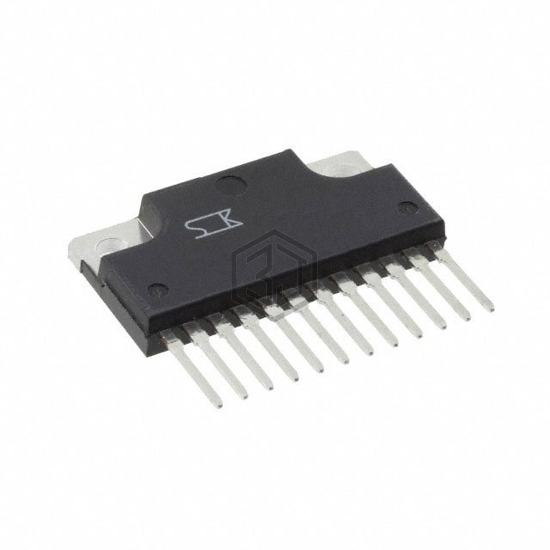

MOSFET 3N/3P-CH 60V 6A 12-SIP
SLA5060 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 3N/3P-CH 60V 6A 12-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 12-SIP Exposed Tab, power - max 5W.
In Stock: 637
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 3 N and 3 P-Channel (3-Phase Bridge) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 6A |
| Rds On (Max) @ Id, Vgs | 220mOhm @ 3A, 4V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 10V |
| Power - Max | 5W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Exposed Tab |
| Supplier Device Package | 12-SIP |
Submit your RFQ for SLA5060 and get a quote within 24 hours.
