ZERO INSERTION FORCE 1MM ASSEMBL

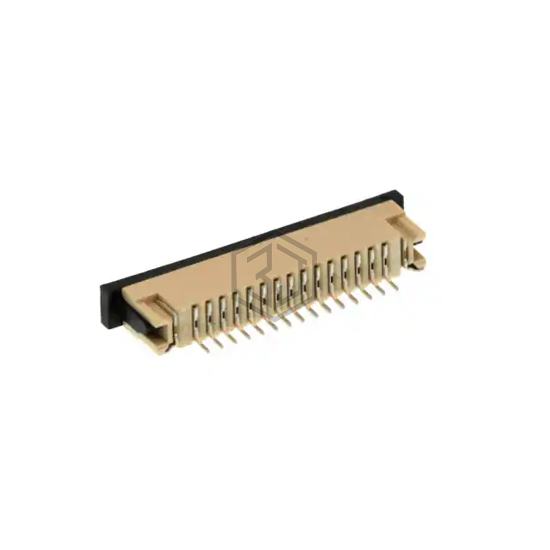

ZF1-15-01-T-WT-TR is a FFC, FPC (Flat Flexible) Connectors manufactured by Samtec Inc.. ZERO INSERTION FORCE 1MM ASSEMBL. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 1,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 15 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | - |
| Height Above Board | 0.118" (3.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | - |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-2 |
Submit your RFQ for ZF1-15-01-T-WT-TR and get a quote within 24 hours.
