1MM SINGLE ROW CONNECTOR

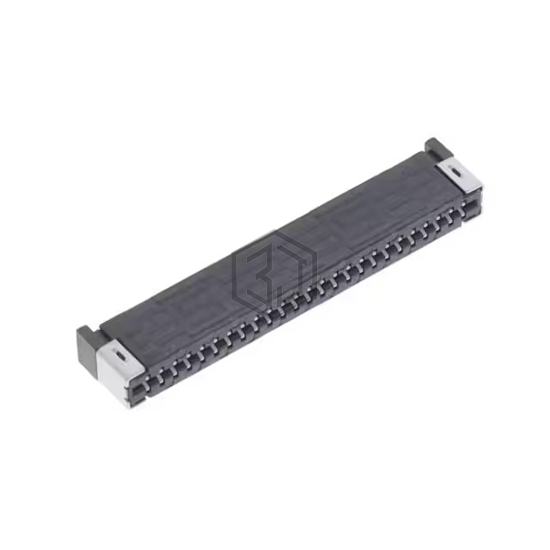

FC1-25-02-T-WT-TR is a FFC, FPC (Flat Flexible) Connectors manufactured by Samtec Inc.. 1MM SINGLE ROW CONNECTOR. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 1,025
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 25 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | - |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Solder Retention |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
Submit your RFQ for FC1-25-02-T-WT-TR and get a quote within 24 hours.
