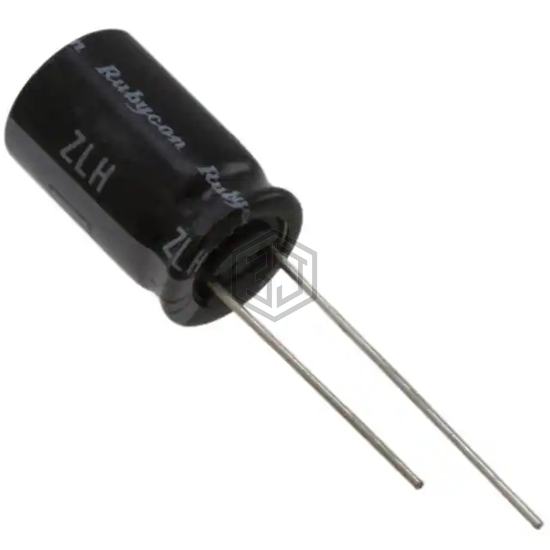

CAP ALUM 82UF 20% 80V RADIAL
80ZLH82MEFC10X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 82UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 312 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 230 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1K820MPD | Nichicon | CAP ALUM 82UF 20% 80V RADIAL | 92% | View |
| UPM2A820MHD6 | Nichicon | CAP ALUM 82UF 20% 100V RADIAL | 80% | View |
| MAL213651829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 50V RADIAL | 75% | View |
| 30D826M160GH2A | Vishay Sprague | CAP ALUM 82UF 20% 160V AXIAL | 56% | View |
| 450CXW82MEFR18X25 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 56% | View |
| EKXJ201ELL820MK20S | United Chemi-Con | CAP ALUM 82UF 20% 200V RADIAL | 55% | View |
Submit your RFQ for 80ZLH82MEFC10X12.5 and get a quote within 24 hours.
