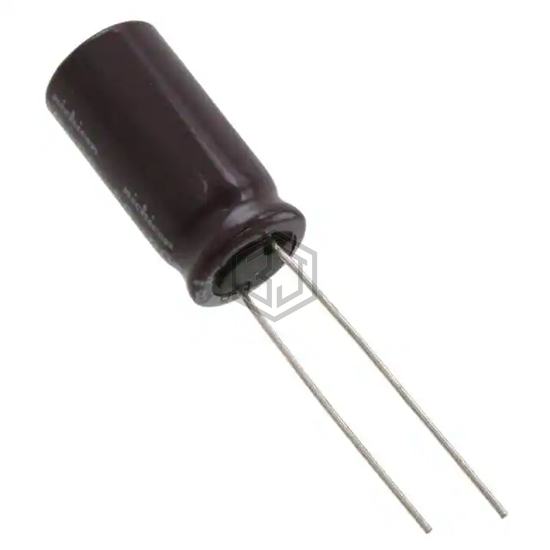

CAP ALUM 82UF 20% 80V RADIAL
UPM1K820MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 7,835
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 395 mA @ 120 Hz |
| Ripple Current @ High Frequency | 620 mA @ 10 kHz |
| Impedance | 250 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K820MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A820MHD6 | Nichicon | CAP ALUM 82UF 20% 100V RADIAL | 86% | View |
| UPJ1K820MPD | Nichicon | CAP ALUM 82UF 20% 80V RADIAL | 86% | View |
| UPM2A820MHD6 | Nichicon | CAP ALUM 82UF 20% 100V RADIAL | 85% | View |
| EEU-FC1H820 | Panasonic Electronic Components | CAP ALUM 82UF 20% 50V RADIAL | 77% | View |
| MAL213651829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 50V RADIAL | 67% | View |
| 860080473005 | Würth Elektronik | CAP ALUM 82UF 20% 25V RADIAL | 61% | View |
