CAP ALUM 2200UF 20% 80V SNAP

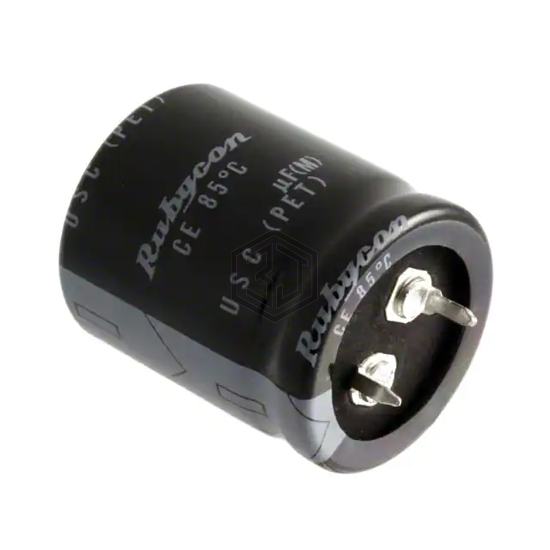

80USC2200MEFCSN25X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9095 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXG800VSN222MA30S | United Chemi-Con | CAP ALUM 2200UF 20% 80V SNAP | 92% | View |
| LKG1J222MESYAK | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 86% | View |
| 100USC2200MEFCSN30X30 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 83% | View |
| MAL215651222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V SNAP | 78% | View |
| LLS1H222MELZ | Nichicon | CAP ALUM 2200UF 20% 50V SNAP | 73% | View |
| 50YXF2200MEFCGC18X35.5 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 70% | View |
Submit your RFQ for 80USC2200MEFCSN25X30 and get a quote within 24 hours.
