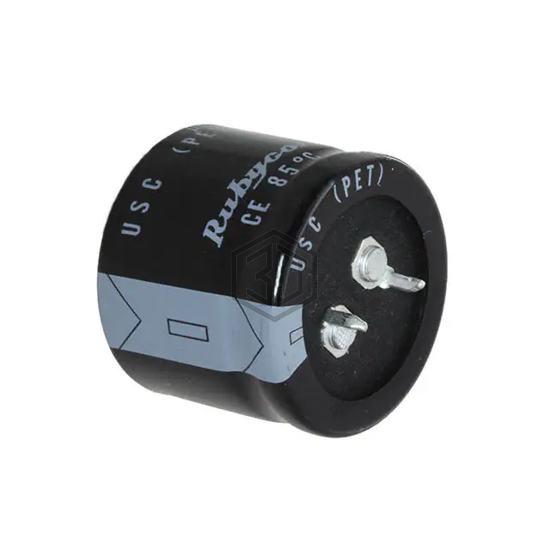

CAP ALUM 2200UF 20% 100V SNAP
100USC2200MEFCSN30X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,882
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.588 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80USC2200MEFCSN25X30 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 83% | View |
| ELXG800VSN222MA30S | United Chemi-Con | CAP ALUM 2200UF 20% 80V SNAP | 75% | View |
| LKG1J222MESYAK | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 70% | View |
| EEU-FK1E222L | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RAD TH | 64% | View |
| 860080378024 | Würth Elektronik | CAP ALUM 2200UF 20% 16V RADIAL | 63% | View |
| B43544A2228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 63% | View |
Submit your RFQ for 100USC2200MEFCSN30X30 and get a quote within 24 hours.
