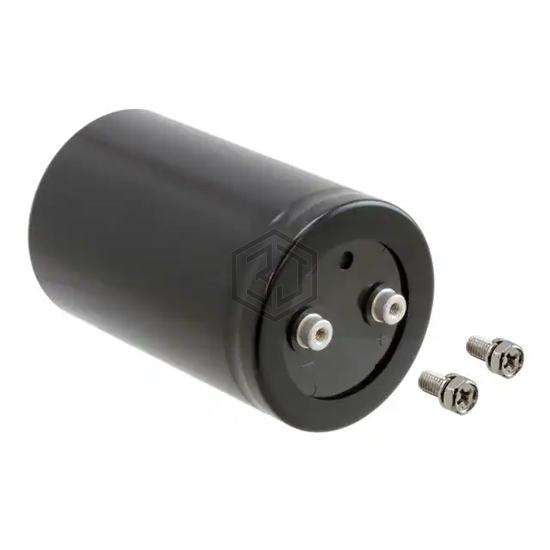

CAP ALUM 100000UF 20% 80V SCREW
80LSW100000MEFC90X151 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,148
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.53 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.063" (154.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1K104MSE | Nichicon | CAP ALUM 100000UF 20% 80V SCREW | 92% | View |
| LNT1J104MSEN | Nichicon | CAP ALUM 100000UF 20% 63V SCREW | 85% | View |
| LNT1J104MSEB | Nichicon | CAP ALUM 100000UF 20% 63V SCREW | 85% | View |
| E32D350HPN104MD79U | United Chemi-Con | CAP ALUM 100000UF 20% 35V SCREW | 78% | View |
| E32D500CPN104MDA5U | United Chemi-Con | CAP ALUM 100000UF 20% 50V SCREW | 69% | View |
| ALS40A104KF025 | KEMET | CAP ALUM 100000UF 20% 25V SCREW | 62% | View |
Submit your RFQ for 80LSW100000MEFC90X151 and get a quote within 24 hours.
