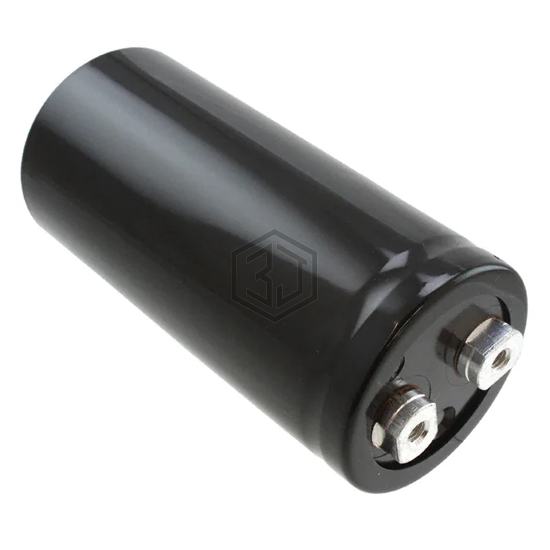

CAP ALUM 100000UF 20% 25V SCREW
ALS40A104KF025 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 100000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,637
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 100Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16.4 A @ 100 Hz |
| Ripple Current @ High Frequency | 16.7 A @ 10 kHz |
| Impedance | 8 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25LSW100000MEFC51X118 | Rubycon | CAP ALUM 100000UF 20% 25V SCREW | 91% | View |
| LNT1E104MSEN | Nichicon | CAP ALUM 100000UF 20% 25V SCREW | 91% | View |
| LNT1V104MSE | Nichicon | CAP ALUM 100000UF 20% 35V SCREW | 84% | View |
| LNT1K104MSE | Nichicon | CAP ALUM 100000UF 20% 80V SCREW | 70% | View |
| LNT1J104MSEN | Nichicon | CAP ALUM 100000UF 20% 63V SCREW | 66% | View |
| B41580A8100M000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 63V SCREW | 64% | View |
Submit your RFQ for ALS40A104KF025 and get a quote within 24 hours.
