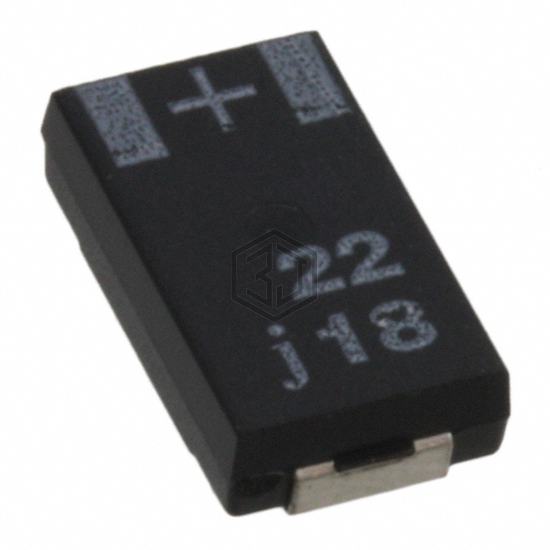

CAP ALUM POLY 22UF 20% 6.3V SMD
6SXB22M is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case 2917 (7343 Metric).
In Stock: 2,074
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
6SXB22M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A700V336M006ATE028 | KEMET | CAP ALUM POLY 33UF 20% 6.3V SMD | 78% | View |
| ESRD220M08B | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 22UF 20% 8V SMD | 77% | View |
| EEF-HX1C220R | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 16V SMD | 69% | View |
| 875015619004 | Würth Elektronik | CAP ALUM POLY 22UF 20% 35V SMD | 69% | View |
| EEF-CX1V220R | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 35V SMD | 69% | View |
| A700V336M010ATE028 | KEMET | CAP ALUM POLY 33UF 20% 10V SMD | 59% | View |
