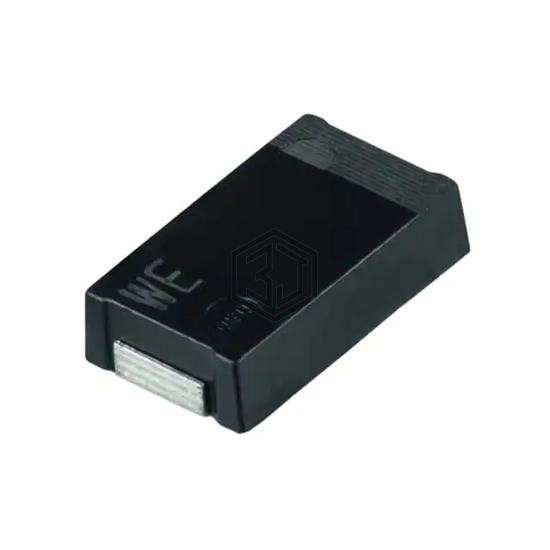

CAP ALUM POLY 22UF 20% 35V SMD
875015619004 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case 2917 (7343 Metric).
In Stock: 7,015
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
875015619004 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A700X226M035ATE040 | KEMET | CAP ALUM POLY 22UF 20% 35V SMD | 100% | View |
| EEF-CX1V220R | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 35V SMD | 100% | View |
| EEF-HX1E220R | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 25V SMD | 86% | View |
| 226XMPL035MG19 | Cornell Dubilier Knowles | CAP ALUM POLY 22UF 20% 35V SMD | 85% | View |
| EEF-HX1D220R | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 20V SMD | 77% | View |
| A700V226M12RATE030 | KEMET | CAP ALUM POLY 22UF 20% 12.5V SMD | 69% | View |
Submit your RFQ for 875015619004 and get a quote within 24 hours.
