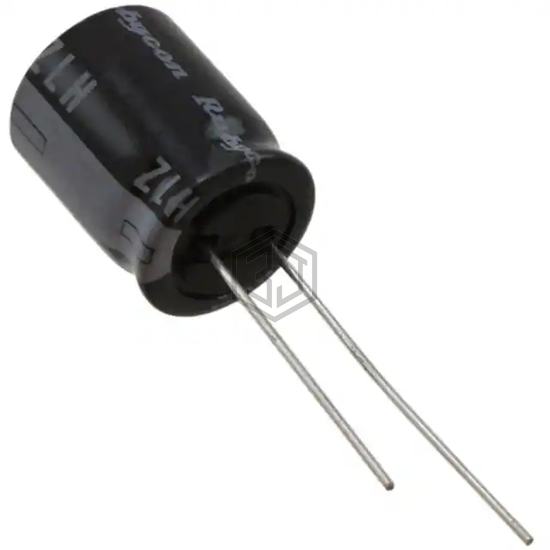

CAP ALUM 270UF 20% 63V RADIAL
63ZLH270MEFC12.5X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 270UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,521
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | 82 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXH270KEFC10X20 | Rubycon | CAP ALUM 270UF 20% 50V RADIAL | 89% | View |
| MAL213638271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 63V RADIAL | 89% | View |
| EEU-FC1J271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 63V RADIAL | 87% | View |
| EGPD800ELL271MK20H | United Chemi-Con | CAP ALUM 270UF 20% 80V RADIAL | 78% | View |
| EKZE350EC3271MH20D | United Chemi-Con | CAP ALUM 270UF 20% 35V RADIAL | 74% | View |
| EEU-FK1V271L | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL TH | 74% | View |
