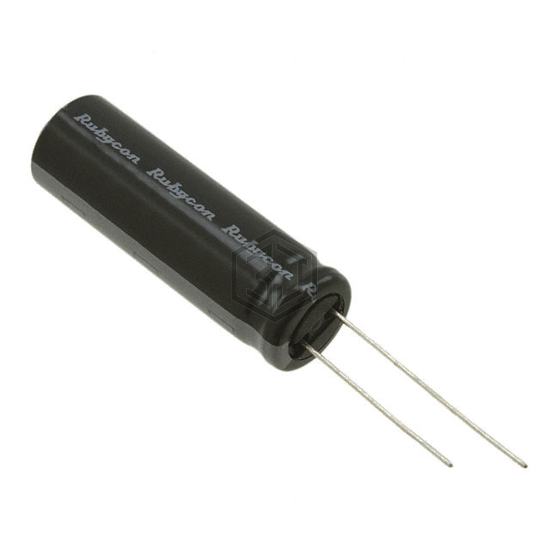

CAP ALUM 560UF 20% 63V RADIAL
63YXG560MEFCG412.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,188
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 577.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 83 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1H561SB | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 88% | View |
| MAL213630561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 35V RADIAL | 67% | View |
| 63ZLJ560M16X20 | Rubycon | CAP ALUM 560UF 20% 63V RADIAL | 63% | View |
| UPA1E561MPD6TD | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 62% | View |
| EEU-FC0J561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 6.3V RADIAL | 58% | View |
| EKZE101ELL561MMN3S | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 53% | View |
Submit your RFQ for 63YXG560MEFCG412.5X35 and get a quote within 24 hours.
