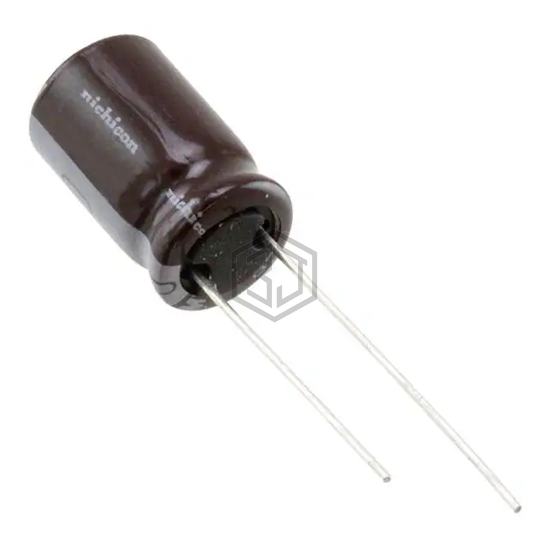

CAP ALUM 560UF 20% 25V RADIAL
UPA1E561MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,338
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.24 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1E561MPD1TD | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 99% | View |
| MAL213630561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 35V RADIAL | 78% | View |
| 567KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 35V RADIAL | 73% | View |
| ELXV101ELL561MM35S | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 70% | View |
| EEU-HD1H561SB | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 65% | View |
| 601D567G050GL2 | Vishay Sprague | CAP ALUM 560UF 50V AXIAL | 56% | View |
Submit your RFQ for UPA1E561MPD6TD and get a quote within 24 hours.
