CAP ALUM 3300UF 20% 63V SNAP

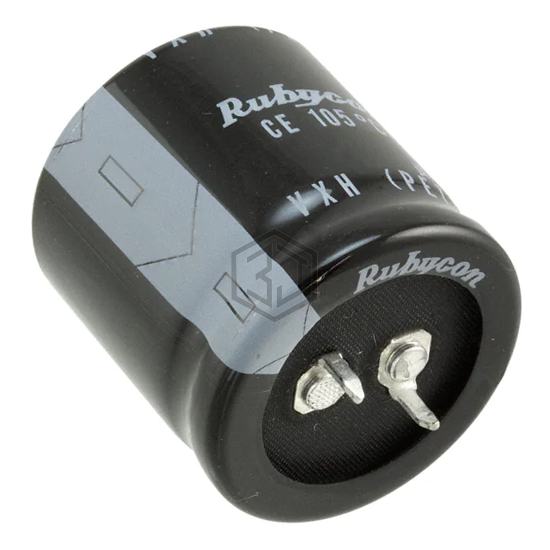

63VXG3300MEFCSN30X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 1,476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4725 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225621332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V SNAP | 84% | View |
| MAL205871332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V SNAP | 82% | View |
| 678D338M020FV4D | Vishay Sprague | CAP ALUM 3300UF 20% 20V RADIAL | 69% | View |
| 25ZLH3300MEFCGC16X25 | Rubycon | CAP ALUM 3300UF 20% 25V RADIAL | 66% | View |
| EKMH101VNN332MA40U | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 65% | View |
| 35YXG3300MEFC18X35.5 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for 63VXG3300MEFCSN30X30 and get a quote within 24 hours.
