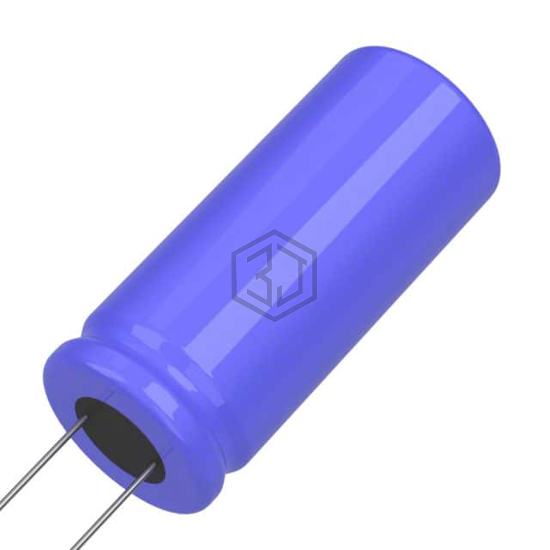

CAP ALUM 3300UF 20% 20V RADIAL
678D338M020FV4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 3300UF 20% 20V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 1,243
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 61mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.575 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.25 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213635332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 90% | View |
| B41043A4338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 16V RADIAL | 87% | View |
| MAL211846332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V T/H | 74% | View |
| ECA-1CHG332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 74% | View |
| EKMG500EC3332MMP1S | United Chemi-Con | CAP ALUM 3300UF 20% 50V RADIAL | 72% | View |
| 678D338M6R3DS3J | Vishay Sprague | CAP ALUM 3300UF 20% 6.3V RADIAL | 68% | View |
Submit your RFQ for 678D338M020FV4D and get a quote within 24 hours.
