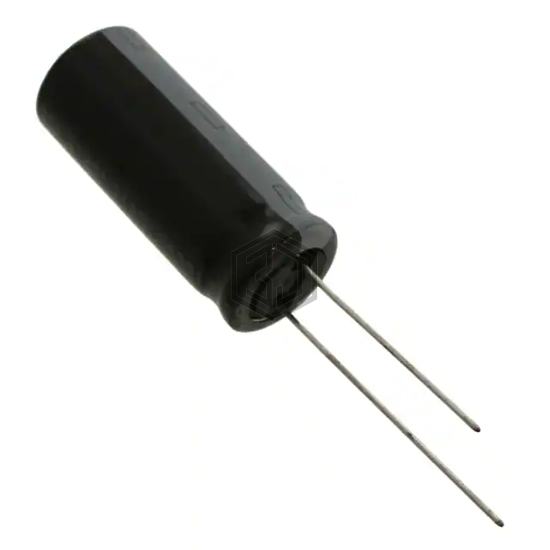

CAP ALUM 6800UF 20% 6.3V RADIAL
6.3ZLH6800MEFCG412.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,969
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.499 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHW0J682MHD | Nichicon | CAP ALUM 6800UF 20% 6.3V RADIAL | 93% | View |
| 10ZLH6800MEFC16X25 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 83% | View |
| LGU1H682MELC | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 62% | View |
| 50MXC6800MEFCSN25X50 | Rubycon | CAP ALUM 6800UF 20% 50V SNAP | 56% | View |
| 80MXG6800MEFCSN30X50 | Rubycon | CAP ALUM 6800UF 20% 80V SNAP | 55% | View |
| MAL204834682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 54% | View |
Submit your RFQ for 6.3ZLH6800MEFCG412.5X35 and get a quote within 24 hours.
