CAP ALUM 6800UF 20% 6.3V RADIAL

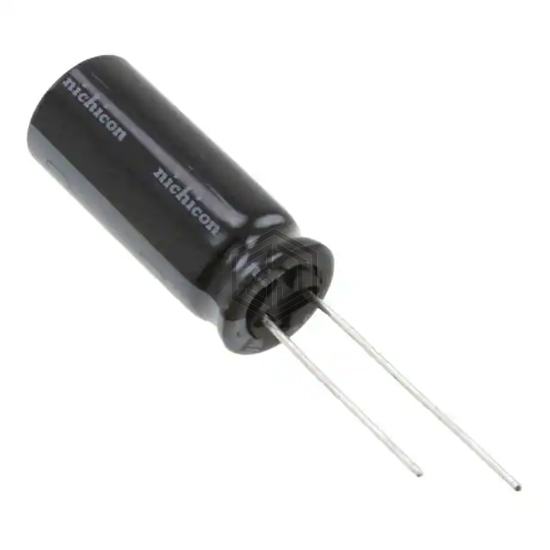

UHW0J682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 259
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.036 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.795 A @ 100 kHz |
| Impedance | 11 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHW0J682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3ZLH6800MEFCG412.5X35 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 93% | View |
| 10ZLH6800MEFCGC16X25 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 81% | View |
| 10ZLH6800MEFC16X25 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 81% | View |
| LGU1H682MELC | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 77% | View |
| 80MXG6800MEFCSN30X50 | Rubycon | CAP ALUM 6800UF 20% 80V SNAP | 67% | View |
| 50MXC6800MEFCSN25X50 | Rubycon | CAP ALUM 6800UF 20% 50V SNAP | 56% | View |
Submit your RFQ for UHW0J682MHD and get a quote within 24 hours.
