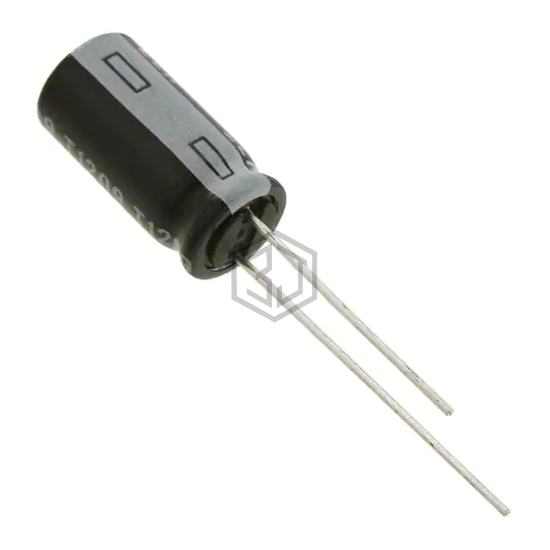

CAP ALUM 1200UF 20% 6.3V RADIAL
6.3ZLH1200MEFC8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,424
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV6R3ELL122MJ20S | United Chemi-Con | CAP ALUM 1200UF 20% 6.3V RADIAL | 92% | View |
| UHE0J122MPD1TD | Nichicon | CAP ALUM 1200UF 20% 6.3V RADIAL | 89% | View |
| 300R122U7R5GE2E | Cornell Dubilier Knowles | CAP ALUM 7.5V POLAR | 89% | View |
| EEU-FC1A122SB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 77% | View |
| ELZA250ELL122MJ25S | United Chemi-Con | CAP ALUM 1200UF 20% 25V RADIAL | 64% | View |
| MAL213650122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for 6.3ZLH1200MEFC8X16 and get a quote within 24 hours.
