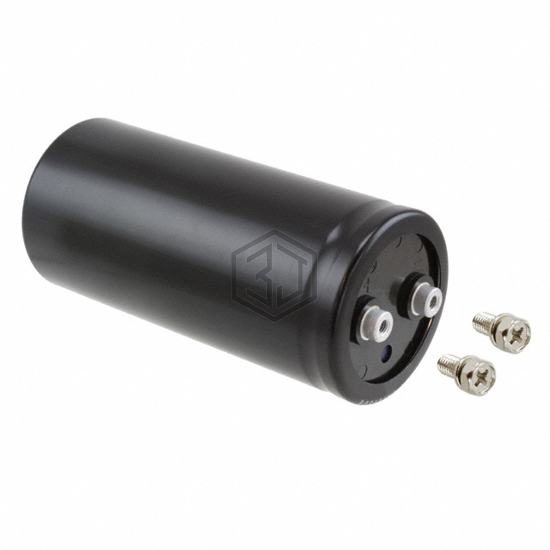

CAP ALUM 1800UF 20% 580V SCREW
580LSU1800MNB64X139 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1800UF 20% 580V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 580 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 580 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.19 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 5.591" (142.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERWE401LGN182MC96U | United Chemi-Con | CAP ALUM 1800UF 20% 400V SCREW | 86% | View |
| LNUN7182MSEG | Nichicon | CAP ALUM 1800UF 20% 525V SCREW | 84% | View |
| LNUN7182MTEG | Nichicon | CAP ALUM 1800UF 20% 525V SCREW | 84% | View |
| LNY2W182MSEF | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 80% | View |
| CGS182T300R5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 300V SCREW | 76% | View |
| LNY2G182MSEFBN | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 71% | View |
Submit your RFQ for 580LSU1800MNB64X139 and get a quote within 24 hours.
