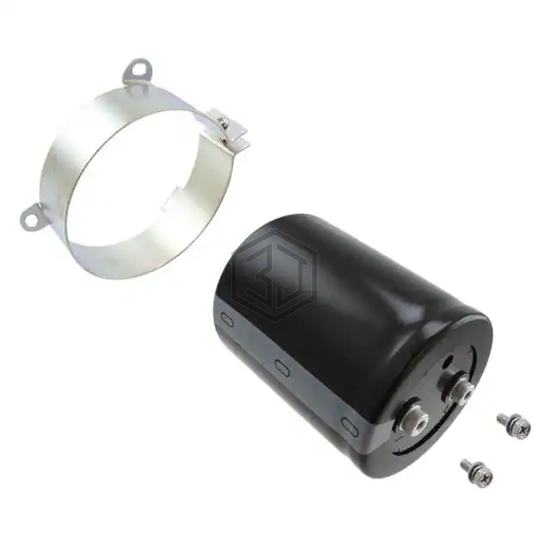

CAP ALUM 1800UF 20% 450V SCREW
LNY2W182MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,532
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.06 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.740" (95.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNUN7182MSEG | Nichicon | CAP ALUM 1800UF 20% 525V SCREW | 95% | View |
| LNUN7182MTEG | Nichicon | CAP ALUM 1800UF 20% 525V SCREW | 95% | View |
| LNY2G182MSEFBN | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 92% | View |
| LNY2G182MSEGBB | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 90% | View |
| LNC2W182MSEFBN | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 82% | View |
| LNC2W182MSEGBB | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 80% | View |
Submit your RFQ for LNY2W182MSEF and get a quote within 24 hours.
