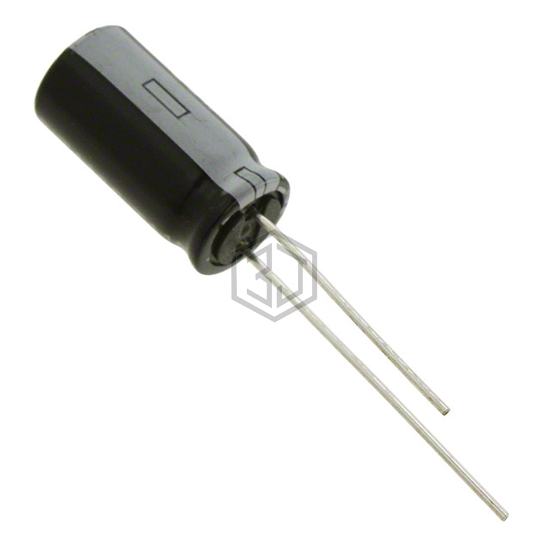

CAP ALUM 120UF 20% 50V RADIAL
50ZLH120MEFCTA8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,133
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 475 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 61 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN500ELL121MH15D | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 91% | View |
| EKYB630ELL121MH20D | United Chemi-Con | CAP ALUM 120UF 20% 63V RADIAL | 79% | View |
| UPM1V121MPD | Nichicon | CAP ALUM 120UF 20% 35V RADIAL | 68% | View |
| 160TXW120MEFR10X30 | Rubycon | CAP ALUM 120UF 20% 160V RADIAL | 67% | View |
| 420TXW120MEFR18X35 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 56% | View |
| 420LXW120MEFR14.5X50 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 51% | View |
Submit your RFQ for 50ZLH120MEFCTA8X16 and get a quote within 24 hours.
