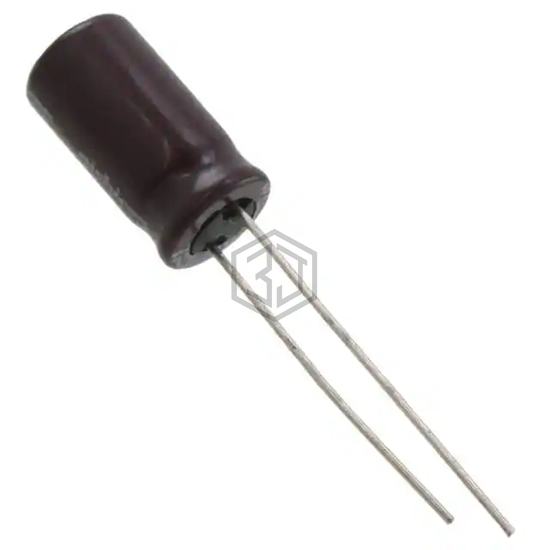

CAP ALUM 120UF 20% 35V RADIAL
UPM1V121MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,515
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 10 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V121MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 35V RADIAL | 97% | View |
| UPM1V121MPD6TD | Nichicon | CAP ALUM 120UF 20% 35V RADIAL | 93% | View |
| 610D127F030DL2 | Vishay Sprague | CAP ALUM 120UF 30V AXIAL | 90% | View |
| ELXV500ELL121MH20D | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 77% | View |
| 672D127F060DS3J | Vishay Sprague | CAP ALUM 120UF 60V RADIAL | 65% | View |
| 672D127H100ET5J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 56% | View |
Submit your RFQ for UPM1V121MPD and get a quote within 24 hours.
