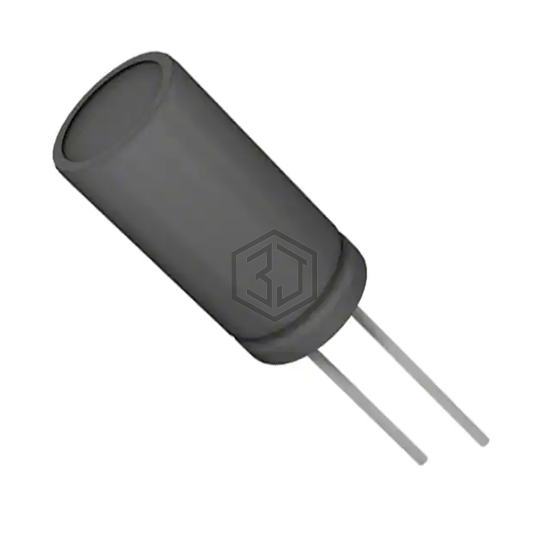

CAP ALUM 330UF 20% 50V RADIAL
50YXJ330M10X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 854 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.22 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 93% | View |
| 757D337M035CG3D | Vishay Sprague | CAP ALUM 330UF 20% 35V RADIAL | 86% | View |
| 50ZLH330MEFCT810X23 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 83% | View |
| RJA331M1HBK-1020S | SURGE | CAP ALUM 330UF 20% 50V RADIAL | 80% | View |
| RF1V331MP51012EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 78% | View |
| EKYA101ELL331ML25S | United Chemi-Con | CAP ALUM 330UF 20% 100V RADIAL | 69% | View |
