Panasonic Electronic Components

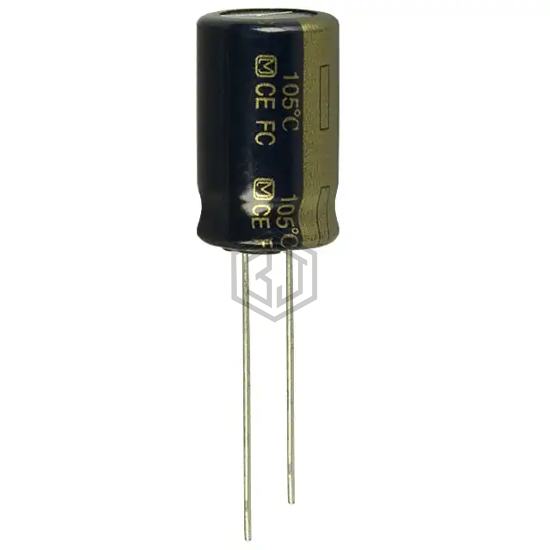

CAP ALUM 330UF 20% 50V RADIAL
EEU-FC1H331 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 962 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.48 A @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D337M035CG3D | Vishay Sprague | CAP ALUM 330UF 20% 35V RADIAL | 88% | View |
| 672D337H040ET5J | Vishay Sprague | CAP ALUM 330UF 40V RADIAL | 86% | View |
| RJA331M1HBK-1020S | SURGE | CAP ALUM 330UF 20% 50V RADIAL | 76% | View |
| 672D337F025DT5D | Vishay Sprague | CAP ALUM 330UF 25V RADIAL | 68% | View |
| MAL211917331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 40V AXIAL | 63% | View |
| RXW331M1EBK-1012S | SURGE | CAP ALUM 330UF 20% 25V RADIAL | 53% | View |
Submit your RFQ for EEU-FC1H331 and get a quote within 24 hours.
