CAP ALUM 47UF 20% 50V SMD

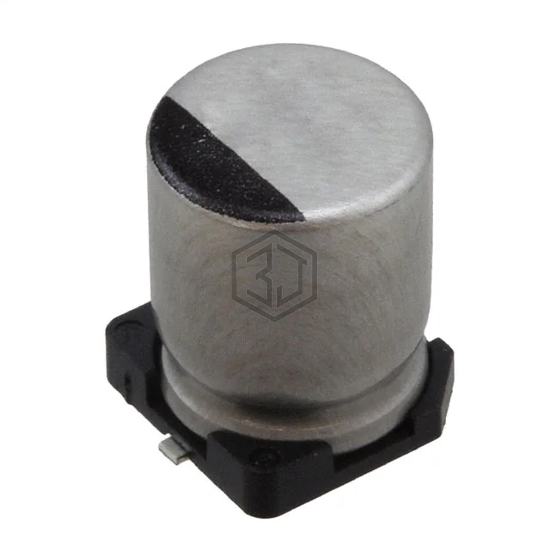

50SGV47M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,544
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 167 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FZ476M063HFKTA | Aillen | CAP ALUM 47UF 20% 50V SMD | 100% | View |
| VZH470M1HTR-0607S | Surge | CAP ALUM 50V POLAR | 87% | View |
| EEV476M050A9LAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 83% | View |
| EXV476M016S9GAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 78% | View |
| EEE-FK1E470AV | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 76% | View |
| UCL1C470MCL1GS | Nichicon | CAP ALUM 47UF 20% 16V SMD | 72% | View |
