CAP ALUM 47UF 20% 16V SMD

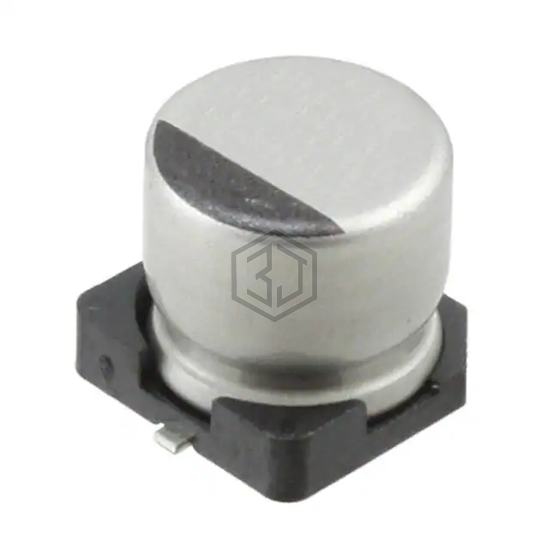

UCL1C470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | 260 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EXV476M016S9GAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 84% | View |
| EEE-FK1E470AV | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 80% | View |
| 50SGV47M8X10.5 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 72% | View |
| 35TZV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 61% | View |
| AFK476M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 6.3V SMD | 52% | View |
| EEV476M050A9LAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 52% | View |
