CAP ALUM 1000UF 20% 50V RADIAL

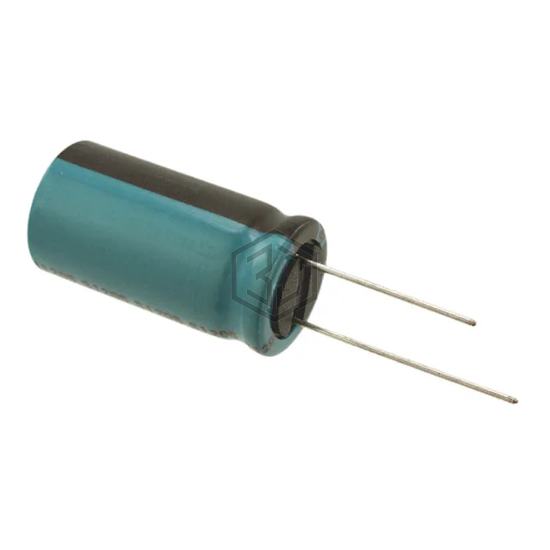

50RX301000MGC16X31.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,461
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.635 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.18 A @ 100 kHz |
| Impedance | 37 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD500ELL102ML20H | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 91% | View |
| UBY1H112MHL | Nichicon | CAP ALUM 1100UF 20% 50V RADIAL | 91% | View |
| UBY1H102MHL1TN | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 91% | View |
| EGPD630ELL102ML25H | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 84% | View |
| UBX1H102MHL | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| 35RX301000M12.5X25 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 75% | View |
Submit your RFQ for 50RX301000MGC16X31.5 and get a quote within 24 hours.
