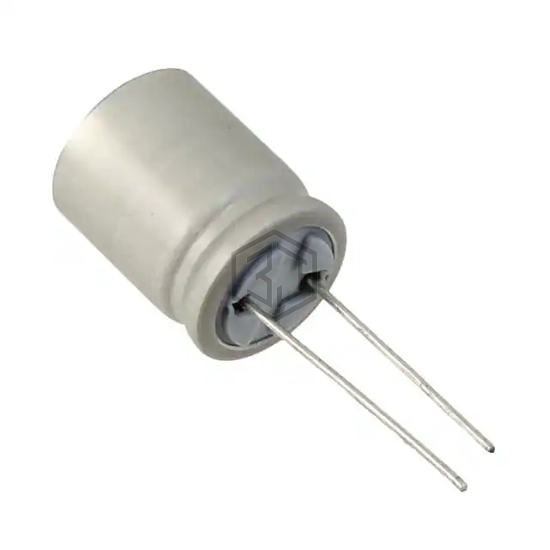

CAP ALUM 1000UF 20% 50V RADIAL
UBY1H102MHL1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.776 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.96 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD500ELL102ML20H | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 100% | View |
| EGPD630ELL102ML25H | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 93% | View |
| UBY1H112MHL | Nichicon | CAP ALUM 1100UF 20% 50V RADIAL | 89% | View |
| UBY1J112MHL | Nichicon | CAP ALUM 1100UF 20% 63V RADIAL | 68% | View |
| UBX1H102MHL | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 67% | View |
| UBY1K112MHL | Nichicon | CAP ALUM 1100UF 20% 80V RADIAL | 61% | View |
