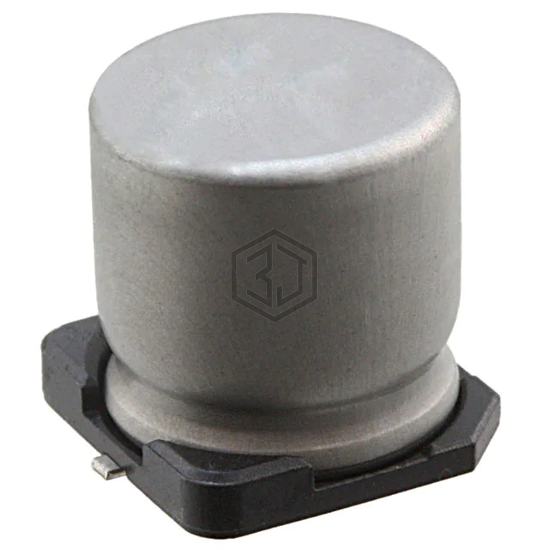

CAP ALUM 4.7UF 20% 50V SMD
50NSEV4.7M6.3X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,464
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVL500ARA4R7ME60G | Chemi-Con | CAP ALUM 4.7UF 20% 50V SMD | 98% | View |
| AHD475M35B12B | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 84% | View |
| EDH475M025A9BAA | KEMET | CAP ALUM 4.7UF 20% 25V SMD | 75% | View |
| ULR2W3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 450V SMD | 60% | View |
| 16NSEV4.7M4X5.5 | Rubycon | CAP ALUM 4.7UF 20% 16V SMD | 54% | View |
| ULT2G3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 400V SMD | 52% | View |
Submit your RFQ for 50NSEV4.7M6.3X5.5 and get a quote within 24 hours.
