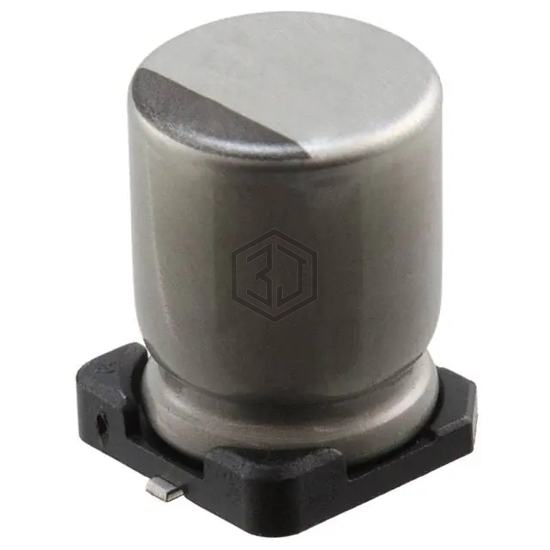

CAP ALUM 3.9UF 20% 450V SMD
ULR2W3R9MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.9UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 7,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.9 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULT2G3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 400V SMD | 89% | View |
| ULH2W3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 450V SMD | 89% | View |
| ULR2H3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 500V SMD | 85% | View |
| ULV2G3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 400V SMD | 84% | View |
| EMKB401ADA3R9MJA0G | United Chemi-Con | CAP ALUM 3.9UF 20% 400V SMD | 78% | View |
| UUX2G3R9MNL1GS | Nichicon | CAP ALUM 3.9UF 20% 400V SMD | 74% | View |
Submit your RFQ for ULR2W3R9MNL1GS and get a quote within 24 hours.
