CAP ALUM 120UF 20% 475V SNAP

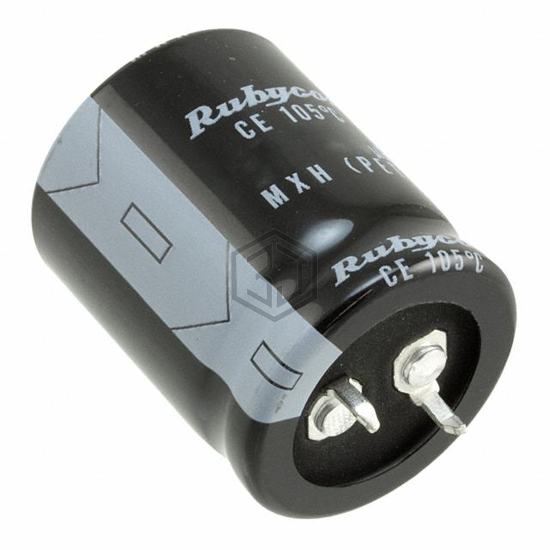

475MXH120MEFCSN25X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 475V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 475 V, package / case Radial, Can - Snap-In.
In Stock: 2,523
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 475 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 960 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.344 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXM451VSN121MP45S | United Chemi-Con | CAP ALUM 120UF 20% 450V SNAP | 92% | View |
| EKMT421VSN121MP30S | United Chemi-Con | CAP ALUM 120UF 20% 420V SNAP | 91% | View |
| LGNW6121MELY35 | Nichicon | CAP ALUM 120UF 20% 420V SNAP | 89% | View |
| EKWA421ELL121MMN3S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 89% | View |
| LAS2W121MELZ35 | Nichicon | CAP ALUM 120UF 20% 450V SNAP | 83% | View |
| LGW2G121MELZ30 | Nichicon | CAP ALUM 120UF 20% 400V SNAP | 83% | View |
Submit your RFQ for 475MXH120MEFCSN25X30 and get a quote within 24 hours.
