CAP ALUM 120UF 20% 420V SNAP

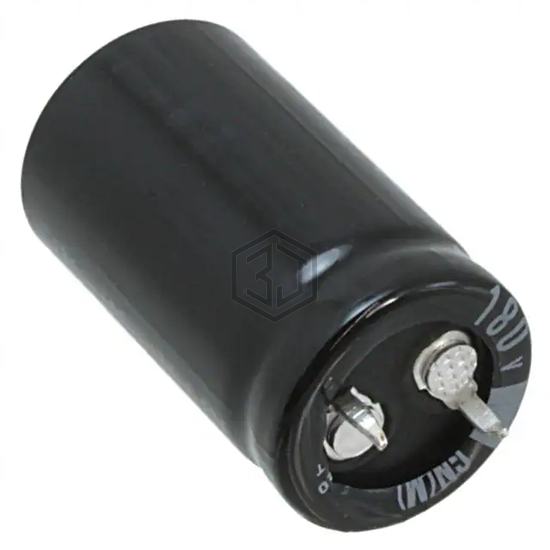

LGNW6121MELY35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,787
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1583 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXM451VSN121MP45S | United Chemi-Con | CAP ALUM 120UF 20% 450V SNAP | 97% | View |
| B43255A9127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 93% | View |
| LAS2W121MELZ35 | Nichicon | CAP ALUM 120UF 20% 450V SNAP | 90% | View |
| ELHS501VSN121MR25S | United Chemi-Con | CAP ALUM 120UF 20% 500V SNAP | 90% | View |
| 475MXH120MEFCSN25X30 | Rubycon | CAP ALUM 120UF 20% 475V SNAP | 89% | View |
| EKMT421VSN121MP30S | United Chemi-Con | CAP ALUM 120UF 20% 420V SNAP | 87% | View |
Submit your RFQ for LGNW6121MELY35 and get a quote within 24 hours.
