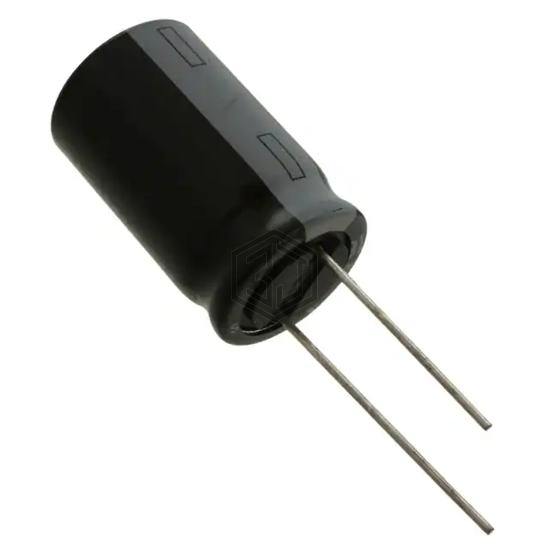

CAP ALUM 47UF 20% 400V RADIAL
400PX47MEFCGC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,314
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAS2G470MHD | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 81% | View |
| 678D476M050CC4D | Vishay Sprague | CAP ALUM 47UF 20% 50V RADIAL | 77% | View |
| 63YXF47MEFCT78X11.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 63% | View |
| MAL214278479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 60% | View |
| 80ZLJ47MT78X11.5 | Rubycon | CAP ALUM 47UF 20% 80V RADIAL | 57% | View |
| EGXE101ELL470MJ16S | United Chemi-Con | CAP ALUM 47UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for 400PX47MEFCGC16X25 and get a quote within 24 hours.
