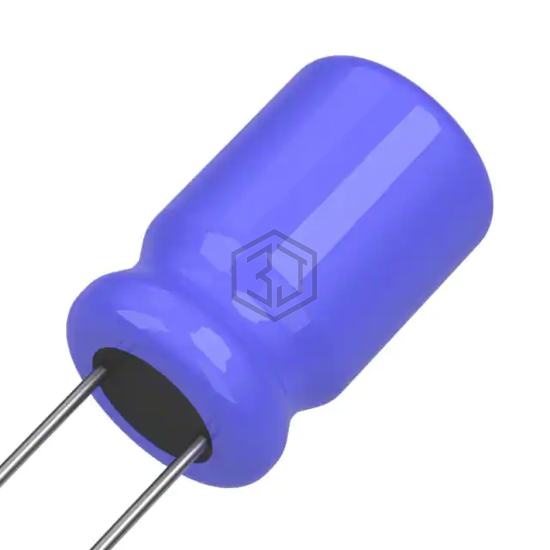

CAP ALUM 47UF 20% 50V RADIAL
678D476M050CC4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 1.25Ohm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 196 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 275 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.563" (14.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1J470MPD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 81% | View |
| MAL215088479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 81% | View |
| MAL213658479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 80% | View |
| ECA-1JHG470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V RADIAL | 71% | View |
| 476KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 100V RADIAL | 57% | View |
| 476KXM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 25V RADIAL | 52% | View |
Submit your RFQ for 678D476M050CC4D and get a quote within 24 hours.
